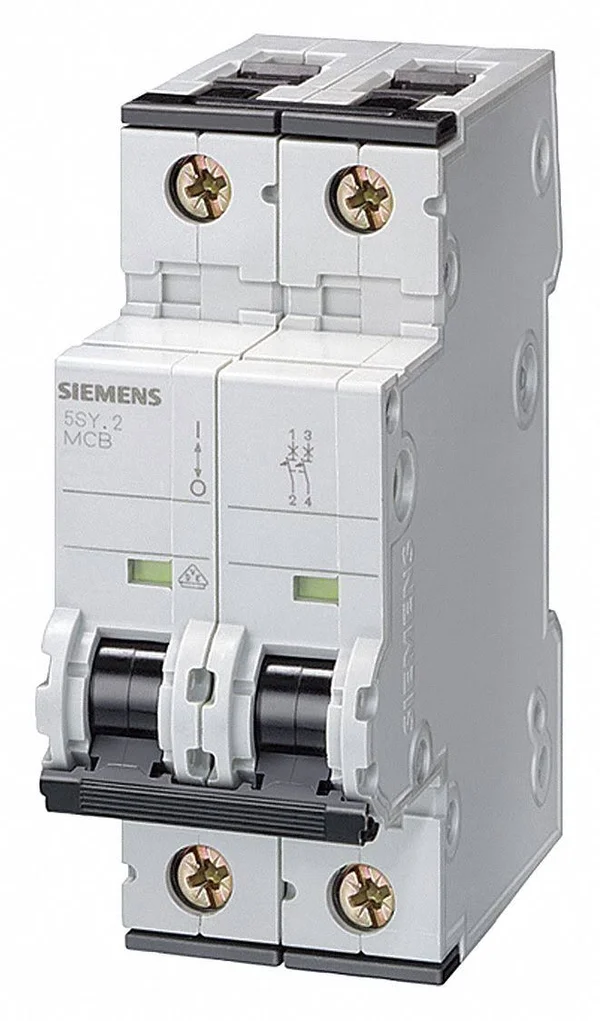

Siemens 5SY62067 2p IEC Supplementary Protector 6A 400VAC

Description

1.57 in Overall Width; 3.3 in Overall Depth; 400V AC Voltage; 4 AWG For Maximum Wire Size; Screw Clamp Terminal Connection Style; DIN Rail Mount Type; Additional Protection Along with a Branch Circuit Protection Device Features; 75 ° C Maximum Operating. E 116385 Specifications Met; 6kA @ 400V AC Interrupt Rating; 3.62 in Overall Height; 6 A Current Rating; C Curve Type; 2 Number of Poles; Thermal-Magnetic Trip Type; 14 AWG For Minimum Wire Size. 1.57 in Overall Width; 3.3 in Overall Depth; 400V AC Voltage; 4 AWG For Maximum Wire Size; Screw Clamp Terminal Connection Style; DIN Rail Mount Type; Additional Protection Along with a Branch Circuit Protection Device Features; 75 ° C Maximum Operating Temperature; -40 ° C Minimum Operating Temperature; EN 60204-1 Specifications Met; Yes RoHS Compliant; Industrial Application; 5SY6 Series; Germany Country of Origin; 400 V AC AC Voltage Rating; Suitable for Lamp and Motor Circuits with Higher. E 116385 Specifications Met; 6kA @ 400V AC Interrupt Rating; 3.62 in Overall Height; 6 A Current Rating; C Curve Type; 2 Number of Poles; Thermal-Magnetic Trip Type; 14 AWG For Minimum Wire Size. 1.57 in Overall Width; 3.3 in Overall Depth; 400V AC Voltage; 4 AWG For Maximum Wire Size; Screw Clamp Terminal Connection Style; DIN Rail Mount Type; Additional Protection Along with a Branch Circuit Protection Device Features; 75 ° C.

Key Features

• 1.57 in Overall Width; 3.3 in Overall Depth; 400V AC Voltage; 4 AWG For Maximum Wire Size; Screw Clamp Terminal Connection Style; DIN Rail Mount Type; Additional Protection Along with a Branch Circuit Protection Device Features; 75 ° C.
• E 116385 Specifications Met; 6kA @ 400V AC Interrupt Rating; 3.62 in Overall Height; 6 A Current Rating; C Curve Type; 2 Number of Poles; Thermal-Magnetic Trip Type; 14 AWG For Minimum Wire Size.
