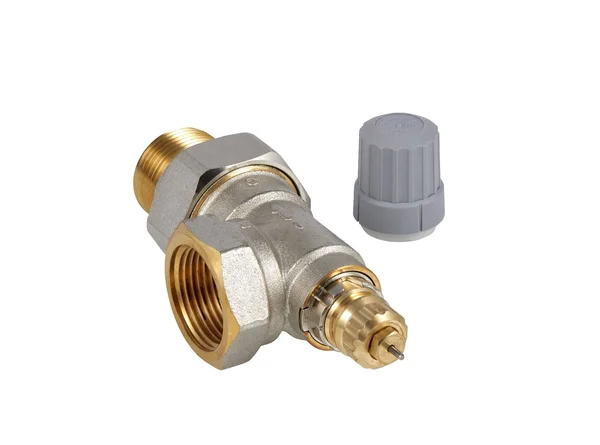

Danfoss 013G8023 1x22 Side Mount Angle Valve Body

Description

Radiator Valve Type Thermostatic Body Configuration Side Mount Angle Nominal Size 1 Inch End Connection Female Threaded x Male Threaded Body Material Nickel Plated Brass Seat Material EPDM Handle Material ABS Plastic Set Temperature Range 45 to 86 Deg F Temperature Rating 250 Deg F Pressure Rating 145 PSI (Static), 15 PSI (Differential) Inclusions/Features Tail Piece Union Application Hot Water, 2-Pipe Low Pressure Steam, Residential, Commercial and Industrial Flow Coefficient 2.8 Features /. Radiator Valve Type Thermostatic Body Configuration Side Mount Angle Nominal Size 1 Inch End Connection Female Threaded x Male Threaded Body Material Nickel Plated Brass Seat Material EPDM Handle Material ABS Plastic Set Temperature Range 45 to 86 Deg F Temperature Rating 250 Deg F Pressure Rating 145 PSI (Static), 15 PSI (Differential) Inclusions/Features Tail Piece Union Application Hot Water, 2-Pipe Low Pressure Steam, Residential, Commercial and Industrial Flow Coefficient 2.8 Features / Benefits Replaceable Packing Assembly While System is in Operation Non-Electric Thermostatic Radiator Valve Conforms to ASHREA/ANSI 102 Same Valve Body Can be Used for Both Hot Water or Low Pressure Steam Applications Patented Vapor Charged Bellows for Quick Response from Valve Mounted Operators Snap-Action Mechanism for Standard Valve Mounted Operators for Ease of Installation and Removal without the Use of Tools.

Key Features

• Radiator Valve Type Thermostatic Body Configuration Side Mount Angle Nominal Size 1 Inch End Connection Female Threaded x Male Threaded Body Material Nickel Plated Brass Seat Material EPDM Handle Material ABS Plastic Set Temperature Range.
