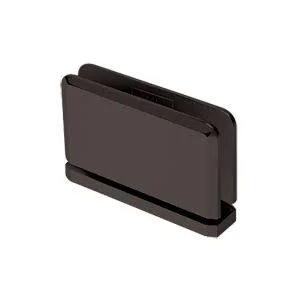

CRL Srpph01bl Black Senior Prima 01 Series Top or Bottom Mount Hinge

Description

SPECIFICATIONS: Glass Thickness: Senior Prima 1/2" (12 mm) Tempered Safety Glass Junior Prima 1/4" (6 mm) Tempered Safety Glass Special Feature: Top and Bottom Mount allows more glass exposure. Advantages of CRL Senior Prima Hinges include the fact that they carry the majority of the weight on the bottom and have the ability to be inset from the wall enabling clearance for towel bars and other projections. SENIOR PRIMA: Using two hinges with 1/2" (12 mm) tempered safety glass the hinge will hold up to 145 lbs. SPECIFICATIONS: Glass Thickness: Senior Prima 1/2" (12 mm) Tempered Safety Glass Junior Prima 1/4" (6 mm) Tempered Safety Glass Special Feature: Top and Bottom Mount allows more glass exposure. Construction: Solid Brass Hinge Swings: Full Rotation Closing Type: Self-Centering when within 15° of closed position. (66 kg) with a maximum door width of 36" (914 mm). SENIOR PRIMA: Using two hinges with 1/2" (12 mm) tempered safety glass the hinge will hold up to 145 lbs. If hinges are to be used for other than their intended purpose approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Can also save on glass fabrication costs when compared to use of Side Mount Glass-to-Glass Hinges requiring more cut-outs. The Glass-to-Fixed Transom Mount Pivot Hinge is used for doors having fixed transoms above them. Our SRPPH06 Model is only compatible with our EZ-Adjust Header System.

Key Features

• (66 kg) with a maximum door width of 36" (914 mm).
• Can also save on glass fabrication costs when compared to use of Side Mount Glass-to-Glass Hinges requiring more cut-outs.
• JUNIOR PRIMA: Using two hinges with 1/4" (6 mm) tempered safety glass the hinge will hold up to 62 lbs.
• SPECIFICATIONS: Glass Thickness: Senior Prima 1/2" (12 mm) Tempered Safety Glass Junior Prima 1/4" (6 mm) Tempered Safety Glass Special Feature: Top and Bottom Mount allows more glass exposure.
• SENIOR PRIMA: Using two hinges with 1/2" (12 mm) tempered safety glass the hinge will hold up to 145 lbs.
• (28 kg) with a maximum door width of 28" (711 mm).
