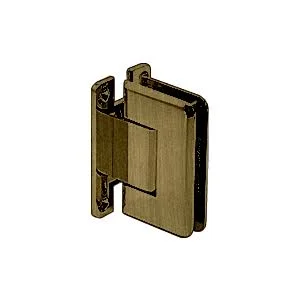

CRL P1n337abr Antique Brass Pinnacle 337 Series Adjustable Wall Mount Full Back Plate HINGE, Gold

Description

Cut-Out Required Includes: Gaskets Screws and Glass Fabrication Dimensions. Closing Type: Self-Centering when within 15 degree of closed position. Contact the DK Hardware Sales Shower Door Department. Once the door is hung simply loosen the Allen set screws and turn the door to the desired closed position. Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. Important Notes: CRL Shower Door Hinges are designed for residential or hotel shower use. By merely tightening the Allen screws your door will self-center to the desired closed position. SPECIFICATIONS: Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass Special Feature: Adjustable to any angle up to 90 degree without having to take door down. P1N13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass. (54 kg) with a maximum door width of 32" (813 mm). CRL Adjustable Pinnacle Series Hinges take our popular Pinnacle Hinge to a new level. Cut-out dimensions for CRL hinges may not match those of other brands. Adjustment to accommodate the desired angle (up to 90 degree) is done after the door is installed. Custom finishes are available on request. Call for details. (36 kg) with a maximum door width of 28" (711 mm). SPECIFICATIONS: Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass Special Feature: Adjustable to any angle up to 90 degree without having to take door down. Use only the template included with this hinge.

Key Features

• (54 kg) with a maximum door width of 32" (813 mm).
• P1N13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.
• SPECIFICATIONS: Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass Special Feature: Adjustable to any angle up to 90 degree without having to take door down.
• Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs.
• (36 kg) with a maximum door width of 28" (711 mm).
• Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs.
