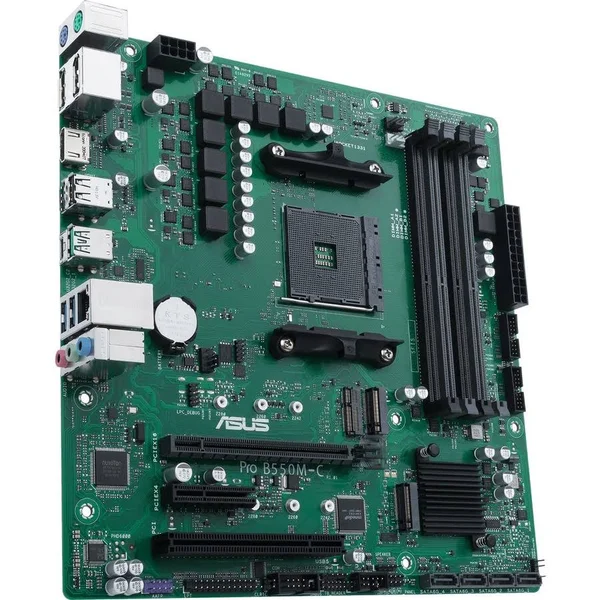

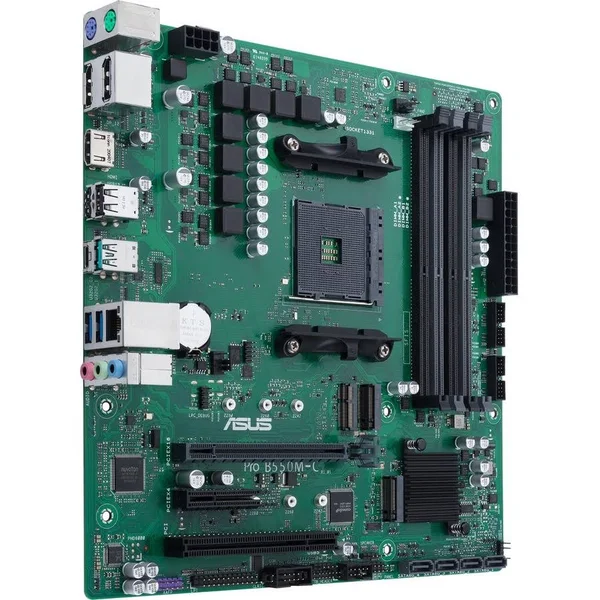

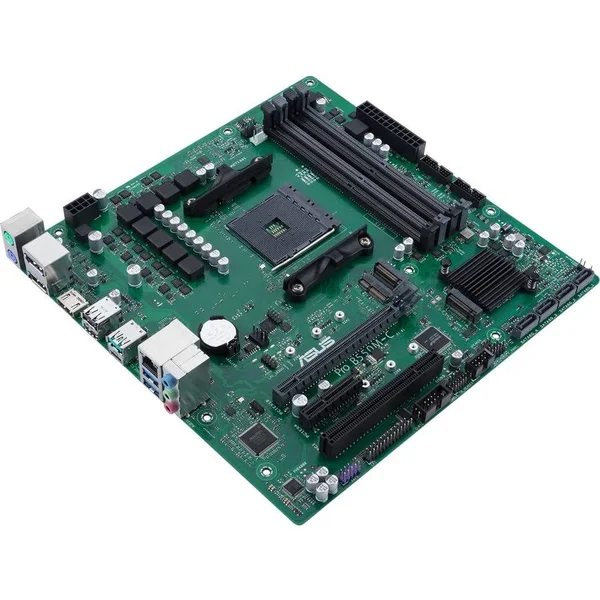

Asus Pro B550M-C/CSM Desktop Motherboard - AMD Chipset - Socket AM4

Description

Micro-ATX Form Factor, AMD B550 Chipset, AM4 Socket, 4 x Dual-Channel DDR4-4800 (OC), 4 x SATA III, 2 x M.2, 1 x PCIe 4.0 x16 Slot, 1 x PCIe 3.0 x4 Slot, 1 x PCI Slot, 7.1-Channel Realtek ALC887/897 Codecs, Supports Wireless Adapter Cards Bring reliability and control to your enterprise workstation with the Pro B550M-C/CSM AM4 Micro-ATX Commercial Motherboard from ASUS. Designed for commercial applications this micro-ATX motherboard incorporates the B550 chipset and AM4 socket making it compatible with AMD 3000- 4000 G- and 5000-series processors. Install up to 128GB of dual-channel DDR4 RAM across four memory slots with speeds up to 4800 MHz supported when overclocking. Connect drives using four SATA III or two M.2 M-Key interfaces. Various adapter cards can be installed using the PCIe 4.0 x16 PCIe 3.0 x4 and 5V 32-bit PCI connectors. An E-Key M.2 slot is also present supporting an optional user-installed wireless adapter card.A rear stainless-steel I/O panel sports one USB 3.2 Gen 2 Type-A port and one Type-C port as well as two USB 3.2 Gen 1 and two 2.0 Type-A ports. Connect an older mouse or keyboard using two PS/2 ports. Interface with multiple displays thanks to an HDMI and two DisplayPort outputs. Audio connectors include three 3.5mm jacks while an RJ45 port supports Gigabit Ethernet. Internal headers support four USB 3.2 Gen 1 and four 2.0 Type-A ports as well as two case fans a chassis intrusion alarm clear CMOS button debugging LED Thunderbolt and front speakers.

Key Features

• Designed for commercial applications this micro-ATX motherboard incorporates the B550 chipset and AM4 socket making it compatible with AMD 3000- 4000 G- and 5000-series processors.
• An E-Key M.2 slot is also present supporting an optional user-installed wireless adapter card.A rear stainless-steel I/O panel sports one USB 3.2 Gen 2 Type-A port and one Type-C port as well as two USB 3.2 Gen 1 and two 2.0 Type-A ports.
• Various adapter cards can be installed using the PCIe 4.0 x16 PCIe 3.0 x4 and 5V 32-bit PCI connectors.
• Connect drives using four SATA III or two M.2 M-Key interfaces.
• Audio connectors include three 3.5mm jacks while an RJ45 port supports Gigabit Ethernet.
• Micro-ATX Form Factor, AMD B550 Chipset, AM4 Socket, 4 x Dual-Channel DDR4-4800 (OC), 4 x SATA III, 2 x M.2, 1 x PCIe 4.0 x16 Slot, 1 x PCIe 3.0 x4 Slot, 1 x PCI Slot, 7.1-Channel Realtek ALC887/897 Codecs, Supports Wireless Adapter Cards.
